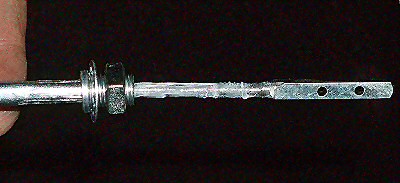

Cable end. Note shaft of inner end anchor has been ground round to fit into sheath, threaded anchor reversed.

Solid cable end. Much of the square shaft has been ground round to fit into
sheath. Threaded anchor has been reversed so nut can be installed on top.
Holes in square shaft are for roll pin that secures tee handle.
